OpenGLRenderer


	@Override
	public void onDrawFrame(GL10 gl) {
		// Clears the screen and depth buffer
		gl.glClear(GL10.GL_COLOR_BUFFER_BIT | GL10.GL_DEPTH_BUFFER_BIT);

		gl.glLoadIdentity();

		gl.glTranslatef(0.0f, 0.0f, -6.0f);
		gl.glScalef(0.2f, 0.2f, 0.2f);

		gl.glTranslatef(0, -4, 0);
		logo.draw(gl, context);
	}

	@Override
	public void onSurfaceChanged(GL10 gl, int width, int height) {
		if (height == 0) {
			height = 1;
		}

		gl.glViewport(0, 0, width, height);
		gl.glMatrixMode(GL10.GL_PROJECTION);
		gl.glLoadIdentity();

		// Calculate The Aspect Ratio Of The Window
		GLU.gluPerspective(gl, 45.0f, (float) width / (float) height, 0.1f, 100.0f);

		gl.glMatrixMode(GL10.GL_MODELVIEW);
		gl.glLoadIdentity();

	}

	@Override
	public void onSurfaceCreated(GL10 gl, EGLConfig config) {

		gl.glEnable(GL10.GL_TEXTURE_2D); 		// Enable Texture Mapping ( NEW )
		gl.glShadeModel(GL10.GL_SMOOTH); 		// Enable Smooth Shading
		gl.glClearColor(1f, 1f, 0.878f, 0.5f);		// Light Yellow Background
		gl.glClearDepthf(1.0f); 			// Depth Buffer Setup
		gl.glEnable(GL10.GL_DEPTH_TEST); 		// Enables Depth Testing
		gl.glDepthFunc(GL10.GL_LEQUAL); 		// The Type Of Depth Testing To Do

		// Really Nice Perspective Calculations
		gl.glHint(GL10.GL_PERSPECTIVE_CORRECTION_HINT, GL10.GL_NICEST);
	}




Square.java:

private FloatBuffer vertexBuffer; // buffer holding the vertices
private float vertices[] = {
	-1.0f, -1.0f, 0.0f, // V1 - bottom left
	-1.0f, 1.0f, 0.0f, // V2 - top left
	1.0f, -1.0f, 0.0f, // V3 - bottom right
	1.0f, 1.0f, 0.0f // V4 - top right
};


Square.java:

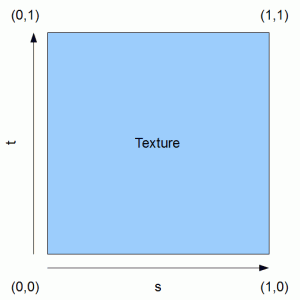

private FloatBuffer textureBuffer; // buffer holding the texture coordinates
private float texture[] = {	   // Mapping coordinates for the vertices
	0.0f, 1.0f, // top left (V2)
	0.0f, 0.0f, // bottom left (V1)
	1.0f, 1.0f, // top right (V4)
	1.0f, 0.0f // bottom right (V3)
					};

/** The texture pointer */
private int[] textures = new int[1];



Učitavanje teksture

MainActivity.java:

	public static int tekstura;
	public static int[] teksture = new int[]
				{
					R.drawable.box,
					R.drawable.cigle,
					R.drawable.steel,
					R.drawable.kod,
					R.drawable.brick001,
					R.drawable.kameni,
					R.drawable.road
				};;

	@Override
	public boolean onTouchEvent(MotionEvent event) {
		if (event != null) {
			if (teksture != null) {
				if (event.getAction() == MotionEvent.ACTION_DOWN) {
					tekstura = teksture[brojac];
					brojac = (short) (++brojac % teksture.length);
				}
			}
		}
		return true;
	}

Square.java:

public void loadGLTexture(GL10 gl, Context context) {
   // loading texture
   Bitmap bitmap = BitmapFactory.decodeResource(context.getResources(), MainActivity.tekstura);

   // generate one texture pointer
   gl.glGenTextures(1, textures, 0);
   // ...and bind it to our array
   gl.glBindTexture(GL10.GL_TEXTURE_2D, textures[0]);

   // create nearest filtered texture
   gl.glTexParameterf(GL10.GL_TEXTURE_2D, GL10.GL_TEXTURE_MIN_FILTER, GL10.GL_NEAREST);
   gl.glTexParameterf(GL10.GL_TEXTURE_2D, GL10.GL_TEXTURE_MAG_FILTER, GL10.GL_LINEAR);

   // Use Android GLUtils to specify a two-dimensional texture image from
   // our bitmap
   GLUtils.texImage2D(GL10.GL_TEXTURE_2D, 0, bitmap, 0);

    // Clean up
   bitmap.recycle();
}

Crtanje na ekran


Square.java

public void draw(GL10 gl) {
	// Point to our buffers
	gl.glEnableClientState(GL10.GL_VERTEX_ARRAY);
	gl.glEnableClientState(GL10.GL_TEXTURE_COORD_ARRAY);

	// Set the face rotation
	gl.glFrontFace(GL10.GL_CW);

	// Point to our vertex buffer
	gl.glVertexPointer(3, GL10.GL_FLOAT, 0, vertexBuffer);
	gl.glTexCoordPointer(2, GL10.GL_FLOAT, 0, textureBuffer);

	// Draw the vertices as triangle strip
	gl.glDrawArrays(GL10.GL_TRIANGLE_STRIP, 0, vertices.length / 3);

	// Disable the client state before leaving
	gl.glDisableClientState(GL10.GL_VERTEX_ARRAY);
}




Crtanje pojedine stranice


Cube.java:

public void draw(GL10 gl, Context context) {
	square.loadGLTexture(gl, context);

	gl.glPushMatrix();
	gl.glTranslatef(0, 0, 1);

	// front surface
	square.draw(gl);

	// front surface
	gl.glPushMatrix();
	gl.glTranslatef(0, 0, -1);
	gl.glTranslatef(1, 0, 0);
	gl.glRotatef(90, 0, 1, 0);
	square.draw(gl);
	gl.glPopMatrix();

	// back surface
	gl.glPushMatrix();
	gl.glTranslatef(0, 0, -2);
	square.draw(gl);
	gl.glPopMatrix();

	// left surface
	gl.glPushMatrix();
	gl.glTranslatef(0, 0, -1);
	gl.glTranslatef(-1, 0, 0);
	gl.glRotatef(90, 0, 1, 0);
	square.draw(gl);
	gl.glPopMatrix();

	// top surface
	gl.glPushMatrix();
	gl.glTranslatef(0, 0, -1);
	gl.glTranslatef(0, 1, 0);
	gl.glRotatef(90, 1, 0, 0);
	square.draw(gl);
	gl.glPopMatrix();

	// bottom surface
	gl.glPushMatrix();
	gl.glTranslatef(0, 0, -1);
	gl.glTranslatef(0, -1, 0);
	gl.glRotatef(90, 1, 0, 0);
	square.draw(gl);
	gl.glPopMatrix();

	gl.glPopMatrix();
}
